一、环境
系统是CentOS 7，使用OpenStack Liberty版本。
拓扑
- 每个服务器两张网卡
- 每个服务器的硬盘除了sda之外都做ceph存储
推荐配置
- ceph 集群大概需要12块硬盘（小企业），最好是SSD
- 每个服务器需要8张网卡，两两做bund，提供管理网络，业务网络，外部网络，存储网络
- 计算节点需要超过128g内存
服务关系
二、 Controller
2.1 基础配置
|
1 2 3 4 5 6 7 8 9 |
# 主机名ip映射关系 [root@controller1 rabbitmq(keystone_admin)]# cat /etc/hosts 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 192.168.53.58 controller1 192.168.53.67 controller2 192.168.53.68 controller3 192.168.53.92 compute1 |
|
1 2 3 4 5 |
yum update yum install -y net-tools yum install -y centos-release-openstack-liberty yum install openstack-packstack |
|
1 2 3 |
vi /etc/profile #打开配置文件 export LC_CTYPE=en_US.UTF-8 |
使用redhat的快速安装工具，CONFIG_COMPUTE_HOSTS只需要在一个controller上填写即可，不需要所有controller上都写上
|
1 2 |
packstack --gen-answer-file a.txt |
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 |
vim a.txt CONFIG_DEFAULT_PASSWORD=bnc CONFIG_MANILA_INSTALL=n CONFIG_CEILOMETER_INSTALL=y CONFIG_NAGIOS_INSTALL=n CONFIG_SWIFT_INSTALL=n CONFIG_PROVISION_DEMO=n CONFIG_NEUTRON_ML2_TYPE_DRIVERS=vlan CONFIG_NEUTRON_ML2_TENANT_NETWORK_TYPES=vlan CONFIG_NEUTRON_ML2_VLAN_RANGES=default:13:2000 # 配置vlan 范围 CONFIG_NEUTRON_OVS_BRIDGE_MAPPINGS=default:br-data CONFIG_NEUTRON_OVS_BRIDGE_IFACES=br-data:enp7s0f0 CONFIG_COMPUTE_HOSTS=192.168.53.92 # 计算节点都写在这里 |
|
1 2 |
packstack --answer-file a.txt # 开始安装 |
安装完成
2.2 删除一个服务
|
1 2 3 4 5 6 7 8 |
yum list | grep -i swift openstack-service stop swift openstack-service status swift yum remove openstack-swift rm -rf /etc/swift/ openstack service list openstack service delete f18a5683261e496584a9d64d4d8f8ec1 #id号 |
修改
|
1 2 3 4 5 |
vi /etc/cinder/cinder.conf auth_uri = http://<你的ip>:5000 # 去掉/v2.0 openstack-service restart cinder |
三、High Availability
3.1 RabbitMQ HA
注：不特别标注的话，每个节点都需要
Rabbitmq 官方(www.rabbitmq.com)文档上搭建高可用集群的方式有两种：
对rabbitmq 官方cluster 文档的中文翻译http://m.oschina.net/blog/93548
尽管rabbitmq 本身支持cluster，但是cluster 并没有高可用。
一、 消息队列高可用(active/active)
二、 使用pacemaker+drbd(active/standby)
这里我们介绍的是第一种高可用方式。
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 |
[root@controller1 ~(keystone_admin)]# ll /var/lib/rabbitmq/ -al # 查找.erlang.cookie total 12 drwxr-x---. 3 rabbitmq rabbitmq 40 Jul 2 02:54 . drwxr-xr-x. 46 root root 4096 Jul 2 04:45 .. -r--------. 1 rabbitmq rabbitmq 20 Jul 2 00:00 .erlang.cookie drwxr-xr-x. 4 rabbitmq rabbitmq 4096 Jul 2 02:54 mnesia scp -rp /var/lib/rabbitmq/.erlang.cookie controller2:/var/lib/rabbitmq/ scp -rp /var/lib/rabbitmq/.erlang.cookie controller3:/var/lib/rabbitmq/ # 校验所有节点的 文件内容是否一致 md5sum /var/lib/rabbitmq/.erlang.cookie #查看RabbitMQ状态 service rabbitmq-server status #重启RabbitMQ service rabbitmq-server restart |
|
1 2 3 4 5 6 |
#查看rabbitmq状态 rabbitmqctl cluster_status Cluster status of node rabbit@rabbit1 ... [{nodes,[{disc,[rabbit@rabbit1]}]},{running_nodes,[rabbit@rabbit1]}] ...done. |
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 |
rabbitmqctl stop_app Stopping node rabbit@rabbit2 ...done. rabbitmqctl join-cluster rabbit@controller1 Clustering node rabbit@rabbit2 with [rabbit@controller] ...done. rabbitmqctl start_app Starting node rabbit@rabbit2 ...done. [root@controller2 ~(keystone_admin)]# rabbitmqctl cluster_status Cluster status of node rabbit@controller2 ... [{nodes,[{disc,[rabbit@controller1,rabbit@controller2,rabbit@controller3]}]}, {running_nodes,[rabbit@controller1,rabbit@controller3,rabbit@controller2]}, {cluster_name,<<"rabbit@controller1">>}, {partitions,[]}, {alarms,[{rabbit@controller1,[]}, {rabbit@controller3,[]}, {rabbit@controller2,[]}]}] |
|
1 2 3 4 5 6 7 8 9 |
#这条命令在任意节点上运行一次就可以 rabbitmqctl set_policy ha-all "^." '{"ha-mode":"all"}' #这条命令在任意节点可以查看上一步的配置 [root@controller2 ~(keystone_admin)]# rabbitmqctl list_policies Listing policies ... / ha-all all ^. {"ha-mode":"all"} 0 |
启动管理插件
[root@controller001 ~(keystone_admin)]# find / -name rabbitmq-plugins
启用插件
[root@controller2 ~(keystone_admin)]# /usr/sbin/rabbitmq-plugins enable
|
1 2 3 4 5 6 7 8 9 10 |
The following plugins have been enabled: mochiweb webmachine rabbitmq_web_dispatch amqp_client rabbitmq_management_agent rabbitmq_management Applying plugin configuration to rabbit@controller2... started 6 plugins. |
|
1 2 3 |
默认web ui url：http://server-name:15672 默认user/pass: guest/guest |
3.2 rabbitmq界面
注意事项
- 为了防止数据丢失的发生，在任何情况下都应该保证至少有一个 node 是采用磁盘
node 方式。RabbitMQ 在很多情况下会阻止创建仅有内存 node 的 cluster ，但是如
果你通过手动将 cluster 中的全部磁盘 node 都停止掉或者强制 reset 所有的磁盘
node 的方式间接导致生成了仅有内存 node 的 cluster ，RabbitMQ 无法阻止你。你这
么做本身是很不明智的，因为会导致你的数据非常容易丢失。 - 当整个 cluster 不能工作了，最后一个失效的 node 必须是第一个重新开始工作的那
一个。如果这种情况得不到满足，所有 node 将会为最后一个磁盘 node 的恢复等待 30
秒。如果最后一个离线的 node 无法重新上线，我们可以通过命令 forget_cluster_node
将其从 cluster 中移除 - 具体参考 rabbitmqctl 的使用手册。
3.3 MangoDB HA(单个节点即可)
Mongodb 简介
MongoDB 是一个高性能，开源，无模式的文档型数据库，是当前NoSql 数据库中比较热门的一种。它在
许多场景下可用于替代传统的关系型数据库或键/值存储方式。Mongo 使用C++开发。Mongo 的官方网
站地址是：http://www.mongodb.org/，读者可以在此获得更详细的信息。
配置时候把controller1和controller2加入，controller3作为仲裁节点
|
1 2 3 4 |
vi /etc/mongod.conf replSet=s1 # 增加一个配置 service mongod restart |
|
1 2 |
yum install mongodb # 安装mongodb客户端 |
|
1 2 3 4 5 6 |
[root@controller1 ~]# mongo --host controller1 MongoDB shell version: 2.6.11 connecting to: controller1:27017/test > use admin switched to db admin |
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 |
> config = {_id:'s1', members:[{_id:0,host:'controller1:27017',priority:3},{_id:1,host:'controller2:27017'}]} { "_id" : "s1", "members" : [ { "_id" : 0, "host" : "controller1:27017", "priority" : 3 }, { "_id" : 1, "host" : "controller2:27017" } ] } > rs.initiate(config) { "ok" : 0, "errmsg" : "couldn't initiate : member controller2:27017 has data already, cannot initiate set. All members except initiator must be empty." } |
提示上述报错，说明需要删除从节点的数据
|
1 2 3 |
[root@controller2 ~]# service mongod stop Redirecting to /bin/systemctl stop mongod.service # 停mongod 服务，然后删除数据 |
|
1 2 3 4 5 6 7 8 9 |
[root@controller2 ~]# ll /var/lib/mongodb/ total 65544 -rw-------. 1 mongodb mongodb 16777216 Jul 2 04:33 ceilometer.0 -rw-------. 1 mongodb mongodb 16777216 Jul 2 04:33 ceilometer.ns drwxr-xr-x. 2 mongodb mongodb 6 Jul 2 21:39 journal -rw-------. 1 mongodb mongodb 16777216 Jul 2 21:35 local.0 -rw-------. 1 mongodb mongodb 16777216 Jul 2 21:35 local.ns -rwxr-xr-x. 1 mongodb mongodb 0 Jul 2 21:39 mongod.lock |
|
1 2 3 4 5 6 7 |
默认数据目录在/var/lib/mongodb rm /var/lib/mongodb/ -rf [root@controller2 ~]# mkdir -p /var/lib/mongodb [root@controller2 ~]# chown -R mongodb. /var/lib/mongodb [root@controller2 ~]# service mongod restart Redirecting to /bin/systemctl restart mongod.service |
再尝试把controller2加入s1集群
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 |
[root@controller1 ~]# mongo --host controller1 MongoDB shell version: 2.6.11 connecting to: controller1:27017/test > > use admin switched to db admin > config = {_id:'s1',members:[{_id:0,host:'controller1:27017',priority:3},{_id:1,host:'controller2:27017'}]} { "_id" : "s1", "members" : [ { "_id" : 0, "host" : "controller1:27017", "priority" : 3 }, { "_id" : 1, "host" : "controller2:27017" } ] } > rs.initiate(config) { "info" : "Config now saved locally. Should come online in about a minute.", "ok" : 1 } > rs.status() { "set" : "s1", "date" : ISODate("2016-07-03T01:44:20Z"), "myState" : 2, "members" : [ { "_id" : 0, "name" : "controller1:27017", "health" : 1, "state" : 2, "stateStr" : "SECONDARY", "uptime" : 1056, "optime" : Timestamp(1467510253, 1), "optimeDate" : ISODate("2016-07-03T01:44:13Z"), "self" : true }, { "_id" : 1, "name" : "controller2:27017", "health" : 1, "state" : 5, "stateStr" : "STARTUP2", "uptime" : 6, "optime" : Timestamp(0, 0), "optimeDate" : ISODate("1970-01-01T00:00:00Z"), "lastHeartbeat" : ISODate("2016-07-03T01:44:20Z"), "lastHeartbeatRecv" : ISODate("2016-07-03T01:44:20Z"), "pingMs" : 0, "lastHeartbeatMessage" : "initial sync need a member to be primary or secondary to do our initial sync" } ], "ok" : 1 } s1:SECONDARY> |
为了满足副本集内部选举算法的条件，还要添加一个仲裁节点
|
1 2 3 4 5 |
[root@controller1 ~]# mongo --host controller1 > use admin switched to db admin rs.addArb(“controller3:27017”) |
三个节点都ok了
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 |
s1:PRIMARY> rs.status() { "set" : "s1", "date" : ISODate("2016-07-03T01:49:06Z"), "myState" : 1, "members" : [ { "_id" : 0, "name" : "controller1:27017", "health" : 1, "state" : 1, "stateStr" : "PRIMARY", "uptime" : 1342, "optime" : Timestamp(1467510535, 1), "optimeDate" : ISODate("2016-07-03T01:48:55Z"), "electionTime" : Timestamp(1467510262, 1), "electionDate" : ISODate("2016-07-03T01:44:22Z"), "self" : true }, { "_id" : 1, "name" : "controller2:27017", "health" : 1, "state" : 2, "stateStr" : "SECONDARY", "uptime" : 292, "optime" : Timestamp(1467510535, 1), "optimeDate" : ISODate("2016-07-03T01:48:55Z"), "lastHeartbeat" : ISODate("2016-07-03T01:49:06Z"), "lastHeartbeatRecv" : ISODate("2016-07-03T01:49:04Z"), "pingMs" : 0, "syncingTo" : "controller1:27017" }, { "_id" : 2, "name" : "controller3:27017", "health" : 1, "state" : 7, "stateStr" : "ARBITER", "uptime" : 11, "lastHeartbeat" : ISODate("2016-07-03T01:49:05Z"), "lastHeartbeatRecv" : ISODate("2016-07-03T01:49:05Z"), "pingMs" : 0 } ], "ok" : 1 } s1:PRIMARY> |
3.4 Mariadb HA(按指定节点配置)
Mariadb 简介
Galera 本质是一个wsrep 提供者（provider），运行依赖于wsrep 的API 接口。Wsrep API
定义了一系列应用回调和复制调用库，来实现事务数据库同步写集(writeset)复制以及相似应用。
目的在于从应用细节上实现抽象的，隔离的复制。虽然这个接口的主要目标是基于认证的多主复
制，但同样适用于异步和同步的主从复制。
安装rsync
|
1 2 |
[root@controller1 ~]# yum install -y rsync |
创建数据库的账号密码（只需要在controller1上配置，slave节点不需要）
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 |
#创建同步数据库的账号密码 [root@controller1 ~]# mysql -uroot Welcome to the MariaDB monitor. Commands end with ; or \g. Your MariaDB connection id is 1482 Server version: 5.5.40-MariaDB-wsrep MariaDB Server, wsrep_25.11.r4026 Copyright (c) 2000, 2015, Oracle, MariaDB Corporation Ab and others. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. MariaDB [(none)]> GRANT ALL PRIVILEGES on *.* to bnc@'%' identified by 'bnc'; Query OK, 0 rows affected (0.00 sec) #创建一个bnc用户， 密码也是bnc MariaDB [(none)]> flush privileges -> ; Query OK, 0 rows affected (0.00 sec) #刷新下权限 |
编辑文件（controller1和controller2上需要配置，controller3作为仲裁节点不需要配置）
|
1 2 3 4 5 6 7 8 9 10 11 12 |
vim /etc/my.cnf.d/server.cnf [mysqld] wsrep_provider=/usr/lib64/galera/libgalera_smm.so wsrep_cluster_name="my_wsrep_cluster" wsrep_cluster_address="gcomm://" #空地址 #wsrep_cluster_address="gcomm://controller1,controller2,controller3" wsrep_node_name=controller1 wsrep_node_address=controller1 wsrep_sst_method=rsync wsrep_sst_auth=bnc:bnc wsrep_slave_threads=8 |
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 |
[root@controller1 ~]# service mariadb stop Redirecting to /bin/systemctl stop mariadb.service [root@controller1 ~]# service mariadb start Redirecting to /bin/systemctl start mariadb.service [root@controller1 ~]# mysql -uroot Welcome to the MariaDB monitor. Commands end with ; or \g. Your MariaDB connection id is 22 Server version: 5.5.40-MariaDB-wsrep MariaDB Server, wsrep_25.11.r4026 Copyright (c) 2000, 2015, Oracle, MariaDB Corporation Ab and others. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. MariaDB [(none)]> show status like 'wsrep%'; +------------------------------+--------------------------------------+ | Variable_name | Value | +------------------------------+--------------------------------------+ | wsrep_local_state_uuid | b5b8da17-40c4-11e6-a3f9-1fe593f04af7 | | wsrep_protocol_version | 5 | | wsrep_last_committed | 4 | | wsrep_replicated | 4 | | wsrep_replicated_bytes | 1666 | | wsrep_repl_keys | 18 | | wsrep_repl_keys_bytes | 236 | | wsrep_repl_data_bytes | 1174 | | wsrep_repl_other_bytes | 0 | | wsrep_received | 2 | | wsrep_received_bytes | 146 | | wsrep_local_commits | 4 | | wsrep_local_cert_failures | 0 | | wsrep_local_replays | 0 | | wsrep_local_send_queue | 0 | | wsrep_local_send_queue_avg | 0.000000 | | wsrep_local_recv_queue | 0 | | wsrep_local_recv_queue_avg | 0.500000 | | wsrep_local_cached_downto | 1 | | wsrep_flow_control_paused_ns | 0 | | wsrep_flow_control_paused | 0.000000 | | wsrep_flow_control_sent | 0 | | wsrep_flow_control_recv | 0 | | wsrep_cert_deps_distance | 1.000000 | | wsrep_apply_oooe | 0.000000 | | wsrep_apply_oool | 0.000000 | | wsrep_apply_window | 1.000000 | | wsrep_commit_oooe | 0.000000 | | wsrep_commit_oool | 0.000000 | | wsrep_commit_window | 1.000000 | | wsrep_local_state | 4 | | wsrep_local_state_comment | Synced | | wsrep_cert_index_size | 14 | | wsrep_causal_reads | 0 | | wsrep_cert_interval | 0.000000 | | wsrep_incoming_addresses | controller1:3306 | | wsrep_cluster_conf_id | 1 | | wsrep_cluster_size | 1 | | wsrep_cluster_state_uuid | b5b8da17-40c4-11e6-a3f9-1fe593f04af7 | | wsrep_cluster_status | Primary | | wsrep_connected | ON | | wsrep_local_bf_aborts | 0 | | wsrep_local_index | 0 | | wsrep_provider_name | Galera | | wsrep_provider_vendor | Codership Oy <info@codership.com> | | wsrep_provider_version | 3.5(rXXXX) | | wsrep_ready | ON | | wsrep_thread_count | 9 | +------------------------------+--------------------------------------+ 48 rows in set (0.01 sec) |
在controller2上进行如下配置：
安装rsync
|
1 2 |
[root@controller1 ~]# yum install -y rsync |
|
1 2 3 4 5 6 7 8 9 10 |
wsrep_provider=/usr/lib64/galera/libgalera_smm.so wsrep_cluster_name="my_wsrep_cluster" #wsrep_cluster_address="gcomm://" wsrep_cluster_address="gcomm://controller1,controller2,controller3" wsrep_node_name=controller2 wsrep_node_address=controller2 wsrep_sst_method=rsync wsrep_sst_auth=bnc:bnc wsrep_slave_threads=8 |
重启mariadb报错
|
1 2 3 4 5 6 7 |
[root@controller2 ~]# service mariadb start Redirecting to /bin/systemctl start mariadb.service Job for mariadb.service failed because the control process exited with error code. See "systemctl status mariadb.service" and "journalctl -xe" for details. [root@controller2 ~]# openstack-service stop [root@controller2 ~]# openstack-service status |
有多少跟数据库有关的openstack服务全删除
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 |
[root@controller2 ~]# cd /var/lib/mysql/ [root@controller2 mysql]# ll total 176200 -rw-rw----. 1 mysql mysql 16384 Jul 2 22:25 aria_log.00000001 -rw-rw----. 1 mysql mysql 52 Jul 2 22:25 aria_log_control drwx------. 2 mysql mysql 4096 Jul 2 04:00 cinder -rw-------. 1 mysql mysql 134219048 Jul 2 22:25 galera.cache drwx------. 2 mysql mysql 4096 Jul 2 03:56 glance -rw-rw----. 1 mysql mysql 104 Jul 2 22:25 grastate.dat -rw-rw----. 1 mysql mysql 5242880 Jul 2 22:25 ib_logfile0 -rw-rw----. 1 mysql mysql 5242880 Jul 2 22:25 ib_logfile1 -rw-rw----. 1 mysql mysql 35651584 Jul 2 22:25 ibdata1 drwx------. 2 mysql mysql 4096 Jul 2 03:52 keystone drwx------. 2 mysql root 4096 Jul 2 03:46 mysql srwxrwxrwx. 1 mysql mysql 0 Jul 2 22:25 mysql.sock drwx------. 2 mysql mysql 8192 Jul 2 04:08 neutron drwx------. 2 mysql mysql 8192 Jul 2 04:03 nova drwx------. 2 mysql mysql 4096 Jul 2 03:46 performance_schema drwx------. 2 mysql root 6 Jul 2 03:46 test [root@controller2 mysql]# rm -rf keystone/ cinder/ glance/ neutron/ nova/ |
看一下log
|
1 2 |
/var/log/mariadb/mariadb.log |
把controller2上的数据全删除，再从controller1上拷贝
|
1 2 3 4 |
[root@controller1 ~]scp -pr /var/lib/mysql controller2:/var/lib/ [root@controller2 ~]chown -R mysql. /var/lib/mysql [root@controller2 ~]service mariadb start |
controller3的配置
|
1 2 3 4 5 |
[root@controller3 ~]# service mariadb stop Redirecting to /bin/systemctl stop mariadb.service [root@controller3 ~]# systemctl disable mariadb Removed symlink /etc/systemd/system/multi-user.target.wants/mariadb.service |
|
1 2 3 4 5 6 |
[root@controller3 ~]# egrep -v "^$|^#" /etc/sysconfig/garb 更改下面两行配置 GALERA_NODES="controller1:4567 controller2:4567 controller3:4567" GALERA_GROUP="my_wsrep_cluster" |
garbd是仲裁服务
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 |
[root@controller3 ~]# service garbd start Redirecting to /bin/systemctl start garbd.service [root@controller3 ~]# service garbd status Redirecting to /bin/systemctl status garbd.service ● garbd.service - Galera Arbitrator Daemon Loaded: loaded (/usr/lib/systemd/system/garbd.service; disabled; vendor preset: disabled) Active: active (running) since Sat 2016-07-02 22:52:16 EDT; 3s ago Docs: http://www.codership.com/wiki/doku.php?id=galera_arbitrator Main PID: 6850 (garbd) CGroup: /system.slice/garbd.service └─6850 /usr/sbin/garbd -a gcomm://controller1:4567 -g my_wsrep_cluster Jul 02 22:52:17 controller3 garbd-wrapper[6850]: 2016-07-02 22:52:17.368 INFO: Shift...) Jul 02 22:52:17 controller3 garbd-wrapper[6850]: 2016-07-02 22:52:17.368 INFO: Sendi...7 Jul 02 22:52:17 controller3 garbd-wrapper[6850]: 2016-07-02 22:52:17.369 INFO: Membe.... Jul 02 22:52:17 controller3 garbd-wrapper[6850]: 2016-07-02 22:52:17.369 INFO: Shift...) Jul 02 22:52:17 controller3 garbd-wrapper[6850]: 2016-07-02 22:52:17.369 INFO: 0.0 (.... Jul 02 22:52:17 controller3 garbd-wrapper[6850]: 2016-07-02 22:52:17.369 INFO: Shift...) Jul 02 22:52:17 controller3 garbd-wrapper[6850]: 2016-07-02 22:52:17.369 INFO: 1.0 (.... Jul 02 22:52:17 controller3 garbd-wrapper[6850]: 2016-07-02 22:52:17.369 INFO: Membe.... Jul 02 22:52:17 controller3 garbd-wrapper[6850]: 2016-07-02 22:52:17.369 INFO: Shift...) Jul 02 22:52:17 controller3 garbd-wrapper[6850]: 2016-07-02 22:52:17.369 INFO: Membe.... Hint: Some lines were ellipsized, use -l to show in full. |
可以看到集群的cluster size是3了
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 |
[root@controller1 ~]# mysql -uroot Welcome to the MariaDB monitor. Commands end with ; or \g. Your MariaDB connection id is 87 Server version: 5.5.40-MariaDB-wsrep MariaDB Server, wsrep_25.11.r4026 Copyright (c) 2000, 2015, Oracle, MariaDB Corporation Ab and others. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. MariaDB [(none)]> show status like 'wsrep%'; +------------------------------+--------------------------------------+ | Variable_name | Value | +------------------------------+--------------------------------------+ | wsrep_local_state_uuid | b5b8da17-40c4-11e6-a3f9-1fe593f04af7 | | wsrep_protocol_version | 5 | | wsrep_last_committed | 1738 | | wsrep_replicated | 1738 | | wsrep_replicated_bytes | 980460 | | wsrep_repl_keys | 7528 | | wsrep_repl_keys_bytes | 100198 | | wsrep_repl_data_bytes | 769030 | | wsrep_repl_other_bytes | 0 | | wsrep_received | 41 | | wsrep_received_bytes | 2891 | | wsrep_local_commits | 1738 | | wsrep_local_cert_failures | 0 | | wsrep_local_replays | 0 | | wsrep_local_send_queue | 0 | | wsrep_local_send_queue_avg | 0.009143 | | wsrep_local_recv_queue | 0 | | wsrep_local_recv_queue_avg | 0.048780 | | wsrep_local_cached_downto | 1 | | wsrep_flow_control_paused_ns | 0 | | wsrep_flow_control_paused | 0.000000 | | wsrep_flow_control_sent | 0 | | wsrep_flow_control_recv | 0 | | wsrep_cert_deps_distance | 1.002301 | | wsrep_apply_oooe | 0.102417 | | wsrep_apply_oool | 0.000000 | | wsrep_apply_window | 1.108170 | | wsrep_commit_oooe | 0.000000 | | wsrep_commit_oool | 0.000000 | | wsrep_commit_window | 1.005754 | | wsrep_local_state | 4 | | wsrep_local_state_comment | Synced | | wsrep_cert_index_size | 36 | | wsrep_causal_reads | 0 | | wsrep_cert_interval | 0.110472 | | wsrep_incoming_addresses | ,controller2:3306,controller1:3306 | | wsrep_cluster_conf_id | 13 | | wsrep_cluster_size | 3 | | wsrep_cluster_state_uuid | b5b8da17-40c4-11e6-a3f9-1fe593f04af7 | | wsrep_cluster_status | Primary | | wsrep_connected | ON | | wsrep_local_bf_aborts | 0 | | wsrep_local_index | 2 | | wsrep_provider_name | Galera | | wsrep_provider_vendor | Codership Oy <info@codership.com> | | wsrep_provider_version | 3.5(rXXXX) | | wsrep_ready | ON | | wsrep_thread_count | 9 | +------------------------------+--------------------------------------+ 48 rows in set (0.00 sec) |
最后一步，在controller1上改回这样的配置
|
1 2 3 |
#wsrep_cluster_address="gcomm://" wsrep_cluster_address="gcomm://controller1,controller2,controller3" |
3.5 Keepalived(三个controller都安装)
检查keepalived是否安装
|
1 2 |
[root@controller1 ~]# yum install keepalived |
关闭selinux
|
1 2 3 4 5 6 7 8 |
#永久生效 [root@controller1 ~]# vim /etc/selinux/config SELINUX=disabled #临时生效 [root@controller1 ~]# setenforce 0 [root@controller1 ~]# getenforce 0 Permissive |
更改配置
为了防止虚拟IP乱飘，controller之间的priority可以设置为200，150，100
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 |
[root@controller1 ~]# vim /etc/keepalived/keepalived.conf 全部内容替换成如下 ! Configuration File for keepalived vrrp_script chk_haproxy { script "killall -0 haproxy" interval 2 weight 2 } vrrp_instance VI_1 { interface enp7s0f1 virtual_router_id 53 state BACKUP priority 200 # if use it,the openstack api do not response normally # use_vmac virtualmac # advert_int 1 dont_track_primary nopreempt authentication { auth_type PASS auth_pass password } virtual_ipaddress { 192.168.53.23/32 } track_script { chk_haproxy } notify /usr/local/bin/keepalivednotify.sh } |
创建脚本
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 |
vim /usr/local/bin/keepalivednotify.sh #!/bin/bash TYPE=$1 NAME=$2 STATE=$3 case $STATE in "MASTER") systemctl start haproxy exit 0 ;; "BACKUP") systemctl stop haproxy exit 0 ;; "FAULT") systemctl stop haproxy exit 0 ;; *) echo "Unknown state" exit 1 ;; esac [root@controller1 ~]# chmod +x /usr/local/bin/keepalivednotify.sh |
自启动配置
|
1 2 3 4 |
[root@controller1 ~]# service keepalived start Redirecting to /bin/systemctl start keepalived.service [root@controller1 ~]# chkconfig keepalived on |
|
1 2 |
[root@controller1 ~]# ip a # 查看vip是否生效 |
3.6 HAproxy(三个controller都安装)
安装包
|
1 2 |
[root@controller1 ~]# yum install haproxy |
把keystone的数据库的IP地址全部换掉，换成haproxy的虚拟IP，可以使用navicat图形化界面
编辑文件
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 |
[root@controller1 ~(keystone_admin)]# vim /etc/haproxy/haproxy.cfg [root@controller1 ~(keystone_admin)]# cat /etc/haproxy/haproxy.cfg global log 127.0.0.1 local2 chroot /var/lib/haproxy pidfile /var/run/haproxy.pid maxconn 10000 user haproxy group haproxy daemon stats socket /var/lib/haproxy/stats defaults log global mode tcp option tcplog option dontlognull retries 3 option redispatch maxconn 10000 timeout connect 5000 timeout client 50000 timeout server 50000 listen stats mode http bind 0.0.0.0:8080 stats enable stats refresh 30 stats hide-version stats uri /haproxy_stats stats realm Haproxy\ Status stats auth admin:admin stats admin if TRUE |
在/etc/hosts中加入虚拟IP
|
1 2 3 4 5 6 |
192.168.53.58 controller1 192.168.53.67 controller2 192.168.53.68 controller3 192.168.53.23 controller 192.168.53.92 compute1 |
加入/etc/haproxy/haproxy.cfg末尾
|
1 2 3 4 5 6 |
listen galera-cluster bind controller:3305 balance source server controller1 controller1:3306 check port 4567 inter 2000 rise 2 fall 5 server controller2 controller2:3306 check port 4567 inter 2000 rise 2 fall 5 backup |
|
1 2 |
service keepalived restart |

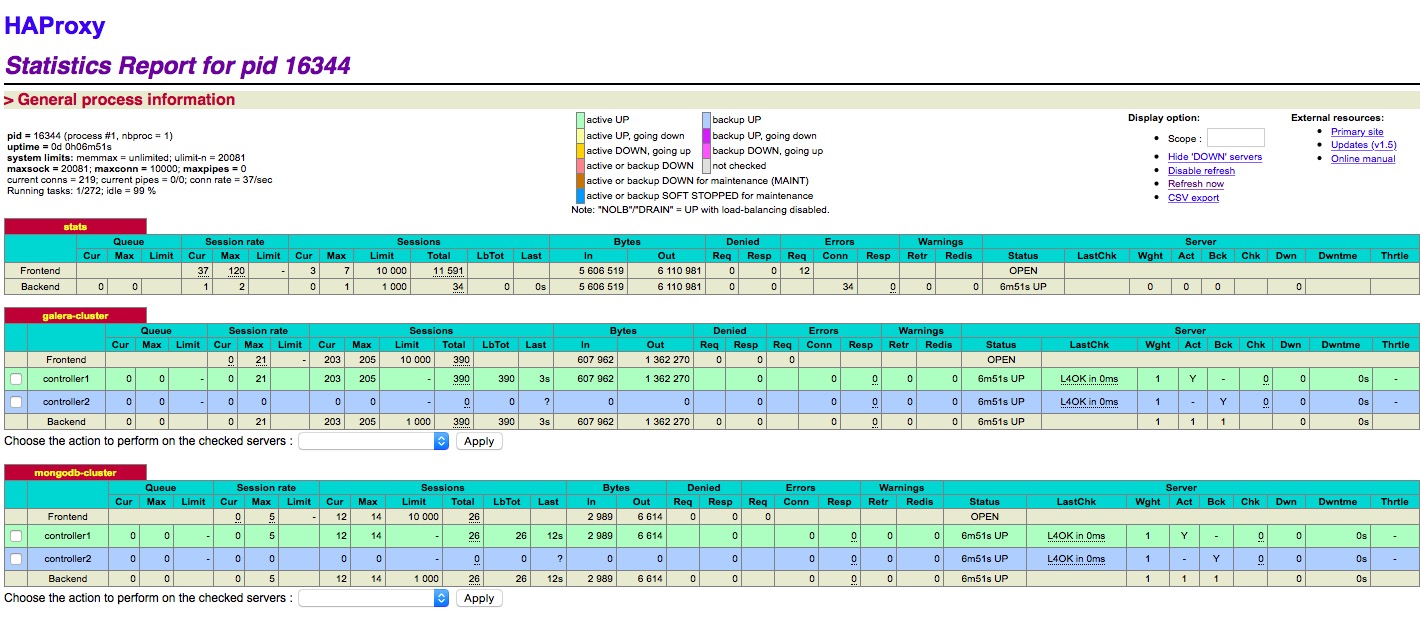

可以看到haproxy在一台controller上是开启的
|
1 2 3 4 5 6 |
listen mongodb-cluster bind controller:27017 balance source server controller1 controller1:27017 check inter 2000 rise 2 fall 5 server controller2 controller2:27017 check inter 2000 rise 2 fall 5 backup |
|
1 2 |
service keepalived restart |
3.7 keystone
在/etc/keystone/keystone.conf中，将controller2，controller3上的密码改成与controller1一致的，端口号为haproxy的端口号
|
1 2 |
connection = mysql+pymysql://keystone_admin:f15c18d2db7a4804@controller:3305/keystone |
重启服务
|
1 2 3 4 |
[root@controller2 ~]# systemctl stop openstack-keystone #由httpd来接管keystone服务 [root@controller2 ~]# systemctl start httpd |
更改keystonerc_admin文件，再source一下
|
1 2 3 4 5 6 7 8 9 10 |
[root@controller1 ~(keystone_admin)]# cat keystonerc_admin unset OS_SERVICE_TOKEN export OS_USERNAME=admin export OS_PASSWORD=79ab659cb04345b9 export OS_AUTH_URL=http://192.168.53.58:5000/v2.0 export PS1='[\u@\h \W(keystone_admin)]\$ ' export OS_TENANT_NAME=admin export OS_REGION_NAME=RegionOne |
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 |
[root@controller1 ~(keystone_admin)]# openstack service list +----------------------------------+------------+-----------+ | ID | Name | Type | +----------------------------------+------------+-----------+ | 13d5b7831a934442b8c16b2ac015c21c | nova_ec2 | ec2 | | 2fafe24035ad4d06bced3cbc4f387c95 | keystone | identity | | 3a2a2080cc4546ef9bc9ac9841323752 | neutron | network | | 958afac483274321a953f1ad217d2576 | ceilometer | metering | | 9ad0bd50a95c4fe1a9045aaa38353f66 | nova | compute | | a3c70cc6b1a6410db36cbaba87afc05a | cinder | volume | | b663d22cae2048598d23238184ea3794 | cinderv2 | volumev2 | | c5bc60c03a384e889978b0b1b937347b | glance | image | | d5c7e6b3545b414baffe9ce86e954bca | novav3 | computev3 | +----------------------------------+------------+-----------+ [root@controller1 ~(keystone_admin)]# [root@controller1 ~(keystone_admin)]# [root@controller1 ~(keystone_admin)]# [root@controller1 ~(keystone_admin)]# [root@controller1 ~(keystone_admin)]# [root@controller1 ~(keystone_admin)]# openstack project list +----------------------------------+----------+ | ID | Name | +----------------------------------+----------+ | 4b73b56644904c36ba9f3426ed20faaf | admin | | cdd428776ab0435e87c82238981f9657 | services | +----------------------------------+----------+ |
查看端口号是否被占用
|
1 2 |
# netstat -plunt | grep 5000 |
在vim /etc/haproxy/haproxy.cfg末尾加入下面配置
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 |
listen keystone-admin bind controller:35358 balance source option tcpka option httpchk option tcplog server controller1 controller1:35357 check inter 10s server controller2 controller2:35357 check inter 10s server controller3 controller3:35357 check inter 10s listen keystone-public bind controller:5001 balance source option tcpka option httpchk option tcplog server controller1 controller1:5000 check inter 10s server controller2 controller2:5000 check inter 10s server controller3 controller3:5000 check inter 10s |
更改keystonerc_admin文件，改为虚拟端口5001，再source一下
|
1 2 3 4 5 6 7 8 9 10 |
[root@controller1 ~(keystone_admin)]# cat keystonerc_admin unset OS_SERVICE_TOKEN export OS_USERNAME=admin export OS_PASSWORD=79ab659cb04345b9 export OS_AUTH_URL=http://192.168.53.58:5001/v2.0 export PS1='[\u@\h \W(keystone_admin)]\$ ' export OS_TENANT_NAME=admin export OS_REGION_NAME=RegionOne |
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 |
[root@controller2 ~(keystone_admin)]# openstack service list +----------------------------------+------------+-----------+ | ID | Name | Type | +----------------------------------+------------+-----------+ | 13d5b7831a934442b8c16b2ac015c21c | nova_ec2 | ec2 | | 2fafe24035ad4d06bced3cbc4f387c95 | keystone | identity | | 3a2a2080cc4546ef9bc9ac9841323752 | neutron | network | | 958afac483274321a953f1ad217d2576 | ceilometer | metering | | 9ad0bd50a95c4fe1a9045aaa38353f66 | nova | compute | | a3c70cc6b1a6410db36cbaba87afc05a | cinder | volume | | b663d22cae2048598d23238184ea3794 | cinderv2 | volumev2 | | c5bc60c03a384e889978b0b1b937347b | glance | image | | d5c7e6b3545b414baffe9ce86e954bca | novav3 | computev3 | +----------------------------------+------------+-----------+ |
注意点
当controller和haproxy在同一台机器上时，才有端口冲突问题，在上面改端口号的方法之外，还可以编辑下面文件，就可以解决端口冲突问题
|
1 2 3 4 5 6 7 |
/etc/httpd/conf/ports.conf Listen controller2:35357 Listen controller2:5000 Listen controller2:80 |
|
1 2 3 4 5 |
[root@controller1 ~(keystone_admin)]# netstat -plunt | grep 35357 tcp 0 0 192.168.53.58:35357 0.0.0.0:* LISTEN 16951/httpd [root@controller1 ~(keystone_admin)]# netstat -plunt | grep 5000 tcp 0 0 192.168.53.58:5000 0.0.0.0:* LISTEN 16951/httpd |
3.8 glance
在vim /etc/haproxy/haproxy.cfg末尾加入下面配置
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 |
listen glance-registry bind controller:9191 balance source option tcpka option tcplog server controller1 controller1:9191 check inter 10s server controller2 controller2:9191 check inter 10s server controller3 controller3:9191 check inter 10s  listen glance-api bind controller:9292 balance source option tcpka option httpchk option tcplog server controller1 controller1:9292 check inter 10s rise 2 fall 5 server controller2 controller2:9292 check inter 10s rise 2 fall 5 server controller3 controller3:9292 check inter 10s rise 2 fall 5 |
在每个controller的
/etc/glance/glance-api.conf进行更改
|
1 2 3 4 5 6 7 8 9 10 |
#connection=mysql+pymysql://glance:96efbf0c50b84888@192.168.53.67/glance connection=mysql+pymysql://glance:3d53cbf61a6b4c6c@controller:3305/glance auth_uri=http://controller:5000/v2.0 identity_uri=http://controller:35357 admin_password=e5557a5325064c05 #这些需要跟controller1一致 bind_host=controller1 registry_host=controller1 rabbit_host=controller1,controller2,controller3 rabbit_hosts=controller1:5672,controller2:5672,controller3:5672 |
/etc/glance/glance-registry.conf进行更改
|
1 2 3 4 5 6 |
connection=mysql+pymysql://glance:3d53cbf61a6b4c6c@controller:3305/glance bind_host=controller1 auth_uri=http://controller:5000/v2.0 identity_uri=http://controller:35357 admin_password=e5557a5325064c05 |
重启glance服务
|
1 2 |
openstack-service restart glance |
|
1 2 3 4 5 |
[root@controller1 ~(keystone_admin)]# netstat -plunt | grep 9191 tcp 0 0 192.168.53.58:9191 0.0.0.0:* LISTEN 29665/python2 [root@controller1 ~(keystone_admin)]# netstat -plunt | grep 9292 tcp 0 0 192.168.53.58:9292 0.0.0.0:* LISTEN 29669/python2 |
重启keepalived服务
|
1 2 |
service keepalived restart |
先启动程序在后台，可用于检查配置是否有问题
|
1 2 |
[root@controller1 ~(keystone_admin)]# haproxy -f /etc/haproxy/haproxy.cfg |
检查glance服务是否OK
|
1 2 3 4 5 6 |
[root@controller2 ~(keystone_admin)]# glance image-list +----+------+ | ID | Name | +----+------+ +----+------+ |
3.9 nova
在vim /etc/haproxy/haproxy.cfg末尾加入下面配置
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 |
listen nova-compute-api bind controller:8774 balance source option tcpka option httpchk option tcplog server controller1 controller1:8774 check inter 10s server controller2 controller2:8774 check inter 10s server controller3 controller3:8774 check inter 10s listen nova-metadata bind controller:8775 balance source option tcpka option tcplog server controller1 controller1:8775 check inter 10s server controller2 controller2:8775 check inter 10s server controller3 controller3:8775 check inter 10s |
|
1 2 |
# vim /etc/nova/nova.conf |
改为下面配置，做适当修改，可用wscp拷贝，再进行相应修改
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 |
[root@controller1 ~(keystone_admin)]# egrep -v "^$|^#" /etc/nova/nova.conf [DEFAULT] novncproxy_host=controller1 novncproxy_port=6080 use_ipv6=False notify_api_faults=False state_path=/var/lib/nova report_interval=10 enabled_apis=ec2,osapi_compute,metadata ec2_listen=controller1 ec2_listen_port=8773 ec2_workers=24 osapi_compute_listen=controller1 osapi_compute_listen_port=8774 osapi_compute_workers=24 metadata_listen=controller1 metadata_listen_port=8775 metadata_workers=24 service_down_time=60 rootwrap_config=/etc/nova/rootwrap.conf volume_api_class=nova.volume.cinder.API api_paste_config=api-paste.ini auth_strategy=keystone use_forwarded_for=False fping_path=/usr/sbin/fping cpu_allocation_ratio=16.0 ram_allocation_ratio=1.5 network_api_class=nova.network.neutronv2.api.API default_floating_pool=public force_snat_range =0.0.0.0/0 metadata_host=192.168.53.67 dhcp_domain=novalocal security_group_api=neutron scheduler_default_filters=RetryFilter,AvailabilityZoneFilter,RamFilter,ComputeFilter,ComputeCapabilitiesFilter,ImagePropertiesFilter,CoreFilter scheduler_driver=nova.scheduler.filter_scheduler.FilterScheduler vif_plugging_is_fatal=True vif_plugging_timeout=300 firewall_driver=nova.virt.firewall.NoopFirewallDriver debug=False verbose=True log_dir=/var/log/nova use_syslog=False syslog_log_facility=LOG_USER use_stderr=True notification_driver =nova.openstack.common.notifier.rabbit_notifier,ceilometer.compute.nova_notifier notification_topics=notifications rpc_backend=rabbit sql_connection=mysql+pymysql://nova:55d6235461c34c4e@controller:3305/nova image_service=nova.image.glance.GlanceImageService lock_path=/var/lib/nova/tmp osapi_volume_listen=0.0.0.0 novncproxy_base_url=http://192.168.53.23:6080/vnc_auto.html [api_database] [barbican] [cells] [cinder] catalog_info=volumev2:cinderv2:publicURL [conductor] use_local=False [cors] [cors.subdomain] [database] [ephemeral_storage_encryption] [glance] api_servers=controller:9292 [guestfs] [hyperv] [image_file_url] [ironic] [keymgr] [keystone_authtoken] auth_uri=http://controller:5000/v2.0 identity_uri=http://controller:35357 admin_user=nova admin_password=0f2d84e61de642a2 admin_tenant_name=services [libvirt] vif_driver=nova.virt.libvirt.vif.LibvirtGenericVIFDriver [matchmaker_redis] [matchmaker_ring] [metrics] [neutron] service_metadata_proxy=True metadata_proxy_shared_secret =9b8066d60bf948f7 url=http://controller:9696 admin_username=neutron admin_password=e8b3a57702d3447b admin_tenant_name=services region_name=RegionOne admin_auth_url=http://controller:5000/v2.0 auth_strategy=keystone ovs_bridge=br-int extension_sync_interval=600 timeout=30 default_tenant_id=default [osapi_v21] [oslo_concurrency] [oslo_messaging_amqp] [oslo_messaging_qpid] [oslo_messaging_rabbit] amqp_durable_queues=False kombu_reconnect_delay=1.0 rabbit_host=controller1,controller2,controller3 rabbit_port=5672 rabbit_hosts=controller1:5672,controller2:5672,controller3:5672 rabbit_use_ssl=False rabbit_userid=guest rabbit_password=guest rabbit_virtual_host=/ rabbit_ha_queues=False heartbeat_timeout_threshold=0 heartbeat_rate=2 [oslo_middleware] [rdp] [serial_console] [spice] [ssl] [trusted_computing] [upgrade_levels] [vmware] [vnc] [workarounds] [xenserver] [zookeeper] [osapi_v3] enabled=False |
|
1 2 3 4 5 6 7 |
#停止nova服务 openstack-service stop nova #启动nova服务 openstack-service start nova #查看状态 openstack-service status nova |
|
1 2 3 4 5 6 7 |
[root@controller1 ~(keystone_admin)]# netstat -plunt | grep 8774 tcp 0 0 192.168.53.58:8774 0.0.0.0:* LISTEN 16661/python2 [root@controller1 ~(keystone_admin)]# netstat -plunt | grep 8775 tcp 0 0 192.168.53.58:8775 0.0.0.0:* LISTEN 16661/python2 [root@controller1 ~(keystone_admin)]# netstat -plunt | grep 6080 tcp 0 0 192.168.53.58:6080 0.0.0.0:* LISTEN 13794/python2 |
在再每个节点上重启keepalived
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 |
[root@controller2 ~(keystone_admin)]# nova service-list +----+------------------+-------------+----------+---------+-------+----------------------------+-----------------+ | Id | Binary | Host | Zone | Status | State | Updated_at | Disabled Reason | +----+------------------+-------------+----------+---------+-------+----------------------------+-----------------+ | 1 | nova-consoleauth | controller1 | internal | enabled | up | 2016-07-03T06:54:05.000000 | - | | 2 | nova-scheduler | controller1 | internal | enabled | up | 2016-07-03T06:54:05.000000 | - | | 3 | nova-conductor | controller1 | internal | enabled | up | 2016-07-03T06:54:05.000000 | - | | 4 | nova-cert | controller1 | internal | enabled | up | 2016-07-03T06:54:05.000000 | - | | 5 | nova-compute | compute1 | nova | enabled | up | 2016-07-03T06:54:13.000000 | - | | 6 | nova-conductor | controller2 | internal | enabled | up | 2016-07-03T06:54:15.000000 | - | | 9 | nova-consoleauth | controller2 | internal | enabled | up | 2016-07-03T06:54:15.000000 | - | | 18 | nova-cert | controller2 | internal | enabled | up | 2016-07-03T06:54:15.000000 | - | | 21 | nova-scheduler | controller2 | internal | enabled | up | 2016-07-03T06:54:15.000000 | - | | 24 | nova-consoleauth | controller3 | internal | enabled | up | 2016-07-03T06:54:17.000000 | - | | 27 | nova-cert | controller3 | internal | enabled | up | 2016-07-03T06:54:17.000000 | - | | 30 | nova-conductor | controller3 | internal | enabled | up | 2016-07-03T06:54:17.000000 | - | | 42 | nova-scheduler | controller3 | internal | enabled | up | 2016-07-03T06:54:17.000000 | - | +----+------------------+-------------+----------+---------+-------+----------------------------+-----------------+ |
3.10 neutron
在vim /etc/haproxy/haproxy.cfg末尾加入下面配置
|
1 2 3 4 5 6 7 |
listen vnc bind controller:6080 balance source server controller1 controller1:6080 check inter 10s server controller2 controller2:6080 check inter 10s server controller3 controller3:6080 check inter 10s |
|
1 2 3 4 5 6 7 8 9 10 |
listen neutron-server bind controller:9696 balance source option tcpka option httpchk option tcplog server controller1 controller1:9696 check inter 10s server controller2 controller2:9696 check inter 10s server controller3 controller3:9696 check inter 10s |
在/etc/neutron/neutron.conf中修改
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 |
[DEFAULT] verbose = True router_distributed = False debug = False state_path = /var/lib/neutron use_syslog = False use_stderr = True log_dir =/var/log/neutron bind_host = controller1 bind_port = 9696 core_plugin =neutron.plugins.ml2.plugin.Ml2Plugin service_plugins =router auth_strategy = keystone base_mac = fa:16:3e:00:00:00 mac_generation_retries = 16 dhcp_lease_duration = 86400 dhcp_agent_notification = True allow_bulk = True allow_pagination = False allow_sorting = False allow_overlapping_ips = True advertise_mtu = False agent_down_time = 75 router_scheduler_driver = neutron.scheduler.l3_agent_scheduler.ChanceScheduler allow_automatic_l3agent_failover = False dhcp_agents_per_network = 1 l3_ha = False api_workers = 24 rpc_workers = 24 use_ssl = False notify_nova_on_port_status_changes = True notify_nova_on_port_data_changes = True nova_url = http://controller:8774/v2 nova_region_name =RegionOne nova_admin_username =nova nova_admin_tenant_name =services nova_admin_password =0f2d84e61de642a2 nova_admin_auth_url =http://controller:5000/v2.0 send_events_interval = 2 rpc_response_timeout=60 rpc_backend=rabbit control_exchange=neutron lock_path=/var/lib/neutron/lock [matchmaker_redis] [matchmaker_ring] [quotas] [agent] root_helper = sudo neutron-rootwrap /etc/neutron/rootwrap.conf report_interval = 30 [keystone_authtoken] auth_uri = http://controller:5000/v2.0 identity_uri = http://controller:35357 admin_tenant_name = services admin_user = neutron admin_password = e8b3a57702d3447b [database] connection = mysql+pymysql://neutron:e2620946daed4a13@controller:3305/neutron max_retries = 10 retry_interval = 10 min_pool_size = 1 max_pool_size = 10 idle_timeout = 3600 max_overflow = 20 [nova] [oslo_concurrency] [oslo_policy] [oslo_messaging_amqp] [oslo_messaging_qpid] [oslo_messaging_rabbit] kombu_reconnect_delay = 1.0 rabbit_host = controller1,controller2,controller3 rabbit_port = 5672 rabbit_hosts = controller1:5672,controller2:5672,controller3:5672 rabbit_use_ssl = False rabbit_userid = guest rabbit_password = guest rabbit_virtual_host = / rabbit_ha_queues = False heartbeat_rate=2 heartbeat_timeout_threshold=0 [qos] notification_drivers = message_queue |
重启neutron服务
|
1 2 |
# openstack-service restart neutron |
查看 neutron agent-list
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 |
[root@controller2 ~(keystone_admin)]# neutron agent-list +--------------------------------------+--------------------+-------------+-------+----------------+---------------------------+ | id | agent_type | host | alive | admin_state_up | binary | +--------------------------------------+--------------------+-------------+-------+----------------+---------------------------+ | 07222119-8557-4bfa-ac91-a487fcaa5af0 | DHCP agent | controller2 | :-) | True | neutron-dhcp-agent | | 14316fc6-be8d-428c-a5c3-5dc29a71c0f2 | Metadata agent | controller3 | :-) | True | neutron-metadata-agent | | 19484a6f-97a8-4bd1-9c46-26981aa99058 | DHCP agent | controller1 | :-) | True | neutron-dhcp-agent | | 31afaa71-9b88-4d70-b055-3ad5e2f571e3 | Open vSwitch agent | controller3 | :-) | True | neutron-openvswitch-agent | | 352c4254-03f8-41a3-97d9-49ccd58a35ba | Open vSwitch agent | compute1 | :-) | True | neutron-openvswitch-agent | | 3684ae49-0090-426e-aaa9-6ea7532d1f02 | Open vSwitch agent | controller1 | :-) | True | neutron-openvswitch-agent | | 6169e996-5640-4313-8814-0845e1f9726a | Metadata agent | controller2 | :-) | True | neutron-metadata-agent | | 77d56e37-549e-4ec8-8805-c99f8820a955 | L3 agent | controller2 | :-) | True | neutron-l3-agent | | 998292f4-9a88-404c-8688-04eedb612ea4 | Open vSwitch agent | controller2 | :-) | True | neutron-openvswitch-agent | | a0ceb7d5-ee2d-49c1-920f-ae717913c2f6 | L3 agent | controller1 | :-) | True | neutron-l3-agent | | a4f09402-9d1d-4660-842c-01bf3da06e25 | Metadata agent | controller1 | :-) | True | neutron-metadata-agent | | c67bb302-6911-49a6-8e84-b251eb5ac2e4 | DHCP agent | controller3 | :-) | True | neutron-dhcp-agent | | fa79912d-0bf6-4373-b6a8-c1b8746f3931 | L3 agent | controller3 | :-) | True | neutron-l3-agent | +--------------------------------------+--------------------+-------------+-------+----------------+---------------------------+ |
3.11 cinder
配置cinder
编辑文件vi /etc/cinder/cinder.conf
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 |
[root@controller1 ~(keystone_admin)]# egrep -v "^$|^#" /etc/cinder/cinder.conf [DEFAULT] glance_host = controller enable_v1_api = True enable_v2_api = True host = controller1 storage_availability_zone = nova default_availability_zone = nova auth_strategy = keystone enabled_backends = lvm osapi_volume_listen = controller1 osapi_volume_workers = 24 nova_catalog_info = compute:nova:publicURL nova_catalog_admin_info = compute:nova:adminURL debug = False verbose = True log_dir = /var/log/cinder notification_driver =messagingv2 rpc_backend = rabbit control_exchange = openstack api_paste_config=/etc/cinder/api-paste.ini [BRCD_FABRIC_EXAMPLE] [CISCO_FABRIC_EXAMPLE] [cors] [cors.subdomain] [database] connection = mysql+pymysql://cinder:73e7560f8da542b3@controller:3305/cinder [fc-zone-manager] [keymgr] [keystone_authtoken] auth_uri = http://controller:5000 identity_uri = http://controller:35357 admin_user = cinder admin_password = a1db95ea939449b5 admin_tenant_name = services [matchmaker_redis] [matchmaker_ring] [oslo_concurrency] [oslo_messaging_amqp] [oslo_messaging_qpid] [oslo_messaging_rabbit] amqp_durable_queues = False kombu_ssl_keyfile = kombu_ssl_certfile = kombu_ssl_ca_certs = rabbit_host = controller1,controller2,controller3 rabbit_port = 5672 rabbit_hosts = controller1:5672,controller2:5672,controller3:5672 rabbit_use_ssl = False rabbit_userid = guest rabbit_password = guest rabbit_virtual_host = / rabbit_ha_queues = False heartbeat_timeout_threshold = 0 heartbeat_rate = 2 [oslo_middleware] [oslo_policy] [oslo_reports] [profiler] [lvm] iscsi_helper=lioadm volume_group=cinder-volumes iscsi_ip_address=192.168.53.58 volume_driver=cinder.volume.drivers.lvm.LVMVolumeDriver volumes_dir=/var/lib/cinder/volumes iscsi_protocol=iscsi volume_backend_name=lvm |
在vim /etc/haproxy/haproxy.cfg末尾加入下面配置
|
1 2 3 4 5 6 7 8 9 10 |
listen cinder-api bind controller:8776 balance source option tcpka option httpchk option tcplog server controller1 controller1:8776 check inter 10s rise 2 fall 5 server controller2 controller2:8776 check inter 10s rise 2 fall 5 server controller3 controller3:8776 check inter 10s rise 2 fall 5 |
重启服务
|
1 2 |
openstack-service restart cinder |
验证服务
|
1 2 3 4 5 6 |
[root@controller2 ~(keystone_admin)]# cinder list +----+--------+------------------+------+------+-------------+----------+-------------+-------------+ | ID | Status | Migration Status | Name | Size | Volume Type | Bootable | Multiattach | Attached to | +----+--------+------------------+------+------+-------------+----------+-------------+-------------+ +----+--------+------------------+------+------+-------------+----------+-------------+-------------+ |
3.12 ceilometer
更改ceilometer配置
|
1 2 |
# vi /etc/ceilometer/ceilometer.conf |
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 |
[DEFAULT] http_timeout = 600 debug = False verbose = True log_dir = /var/log/ceilometer use_syslog = False syslog_log_facility = LOG_USER use_stderr = True notification_topics = notifications rpc_backend = rabbit meter_dispatcher=database event_dispatcher=database [alarm] evaluation_interval = 60 record_history = True evaluation_service=ceilometer.alarm.service.SingletonAlarmService partition_rpc_topic=alarm_partition_coordination [api] port = 8777 host = controller2 [central] [collector] udp_address = 0.0.0.0 udp_port = 4952 [compute] [coordination] [database] metering_time_to_live = -1 event_time_to_live = -1 alarm_history_time_to_live = -1 connection = mongodb://controller:27017/ceilometer idle_timeout = 3600 min_pool_size = 1 max_pool_size = 10 max_retries = 10 retry_interval = 10 max_overflow = 20 [dispatcher_file] [dispatcher_gnocchi] [event] [exchange_control] [hardware] [ipmi] [keystone_authtoken] auth_uri = http://controller:5000/v2.0 identity_uri = http://controller:35357 admin_user = ceilometer admin_password = bnc admin_tenant_name = services [matchmaker_redis] [matchmaker_ring] [meter] [notification] ack_on_event_error = True store_events = False [oslo_concurrency] [oslo_messaging_amqp] [oslo_messaging_qpid] [oslo_messaging_rabbit] rabbit_host = controller1,controller2,controller3 rabbit_port = 5672 rabbit_hosts = controller1:5672,controller2:5672,controller3:5672 rabbit_use_ssl = False rabbit_userid = guest rabbit_password = guest rabbit_virtual_host = / rabbit_ha_queues = False heartbeat_timeout_threshold = 0 heartbeat_rate = 2 [oslo_policy] [polling] [publisher] metering_secret=0301fa12b3f349c9 [publisher_notifier] [publisher_rpc] [rgw_admin_credentials] [service_credentials] os_username = ceilometer os_password = bnc os_tenant_name = services os_auth_url = http://controller:5000/v2.0 os_region_name = RegionOne [service_types] [vmware] [xenapi] |
重启ceilometer服务
|
1 2 |
openstack-service restart ceilometer |
|
1 2 3 4 5 6 |
[root@controller2 ~(keystone_admin)]# ceilometer meter-list +------+------+------+-------------+---------+------------+ | Name | Type | Unit | Resource ID | User ID | Project ID | +------+------+------+-------------+---------+------------+ +------+------+------+-------------+---------+------------+ |
在vim /etc/haproxy/haproxy.cfg末尾加入下面配置
|
1 2 3 4 5 6 7 |
listen ceilometer_api bind controller:8777 balance source server controller1 controller1:8777 check inter 2000 rise 2 fall 5 server controller2 controller2:8777 check inter 2000 rise 2 fall 5 server controller3 controller3:8777 check inter 2000 rise 2 fall 5 |
- 注意点：每次添加完/etc/haproxy/haproxy.cfg配置后都需要在各个controller上重启keepalived或者在active的haproxy节点上重启haproxy服务
[api]
|
1 2 3 4 5 6 7 8 9 10 11 12 13 |
# From ceilometer # The port for the ceilometer API server. (integer value) # Minimum value: 1 # Maximum value: 65535 # Deprecated group/name - [DEFAULT]/metering_api_port #port = 8777 port = 8777 # The listen IP for the ceilometer API server. (string value) #host = 0.0.0.0 host = controller2 |
|
1 2 3 4 5 |
### 3.13 dashboard ### 在vim /etc/haproxy/haproxy.cfg末尾加入下面配置 |
listen dashboard
bind controller:80
balance source
option httpchk
option tcplog
server controller1 controller1:80 check inter 10s
server controller2 controller2:80 check inter 10s
server controller3 controller3:80 check inter 10s
|
1 2 |
HAproxy提供的界面 |
http://192.168.53.58:8080/haproxy_stats
|
1 2 3 4 |
[](https://img1.sdnlab.com/wp-content-uploads/2016/10/OpenStack-high-avalibility-7.png) httpd 配置(每个节点都需要) |
|
1 2 3 4 5 6 7 |
# mv /etc/httpd/conf.d/15-default.conf /etc/httpd/conf.d/15-default.conf.back # vim /etc/openstack-dashboard/local_settings SECRET_KEY = '95b37c567cc4431e9ae875f3eb228c48' # 保持三个controller的SECRET_KEY一致 service httpd restart |
|
1 2 |
vip的dashboard |
http://192.168.53.24/dashboard
作者简介：蒋暕青@上海宽带技术及应用工程研究中心：SDN技术实践者，大四北上思博伦实习半年，现工作地点上海
